AC/DC > Enclosed- Enclosed Switching Power Supply

UHP Series

Wattage :

200W~2500W

Features　:

Slim and Low profile

Fanless design,free air convection

Built-in active PFC function150%

peak load capability(100ms)

DC OK active signal and redundant function(option)

Operating altitude up to 5000 meter

LED indicator for power on

HEP Series

Wattage :

100W~1000W

Features　:

Fanless design

High efficiency up to 96%

Wide working temperature range -55~+70℃

Rugged metal case with IP65 design (IP68 option available), withstand 10G vibration

Operating altitude up to 5000 meters

Suitable for high/low temperature, high dust, high moisture, high vibration, high salt outdoor or harsh environment

6 years warranty

G3 Series

Wattage :

15W~150W

Features　:

Miniature size, non-PFC

5G vibration, 70℃ operation

300VAC input surge

Suitable for critical applications

2 outputs are isolated for RID series

LRS Series

Wattage :

35W~350W

Features　:

Non-PFC, most economical models

Ultra compact and 1U low profile

300VAC input surge

No load power consumption: 0.2W~0.75W

5G vibration, 70℃ operation

Operating altitude up to 5000 meters

Complete safety certificates: IEC/EN60335-1(PD3), IEC/EN61558-1, -2-16; IEC/EN/UL62368-1 and GB4943

SE Series

Wattage :

100W~1500W

Features　:

Non-PFC

Economical medium to high power models

PFC Series

Wattage :

150W~1000W

Features　:

• Built-in active PFC function
• Full range input, complete functions

RSP-75~500 Series

Wattage :

75W~500W

Features　:

1U Low profile with active PFC function: 75W~320W: 30 mm, 500W: 40.5 mm

Built-in constant current limiting circuit (RSP-75/100/150)

Built-in remote ON/OFF control (RSP-75/100/150/500)

Built-in remote sense (RSP-500 only)

HRP Series

Wattage :

75W~1000W

Features　:

Built-in active PFC function

High efficiency, no load power consumption <0.5W~0.75W

5 years warranty

MSP Series

Wattage :

100W~1000W

Features　:

Medical level, built-in active PFC

Medical safety approved (MOOP level)

High efficiency, no load power consumption<0.5W~0.8W

5 years warranty

Peripheral

Wattage :

NA

Features　:

20A/40A Power Supply Redundancy Module
Supports system 1+1 and 1+N redundancy

Two DC input contacts and single output

Built-in two channels DC OK relay contacts for monitoring power status

AC/DC > DIN Rail- DIN Rail Power Supply

HDR Series

Wattage :

15W~150W

Features　:

Plastic case, step shape

1∅, full range input

Compact size, 1SU~6SU width (DIN EN43880)

Isolation class II

DC output voltage adjustable

No load power consumption <0.3W

Assemble on industrial rail TS-35 / 7.5 or 15

Suitable for building automation and control of household appliance

ICL Series AC Inrush Current Limiter

Wattage :

NA

Features　:

180~264VAC input

Built-in thermal fuse and bypass relay

Operation temperature -30~+70℃

2 installation options available:

DIN rail type ICL-16R/28R, can be installed on TS-35/7.5 or 15 DIN rails

Linear type ICL-16L/28L, can be installed on flat surface

MDR Series

Wattage :

10W~96W

Features　:

Plastic case, ultra slim

1∅, full range input

No load power consumption<0.75W~1W

Assemble on industrial rail TS-35 / 7.5 or 15

Built-in active PFC function

DC OK signal output (MDR-10/20)

DC OK relay contact (MDR-40/60/100)

Class I, Div 2 Hazardous Locations T4 (MDR-40/60)

DRA Series

Wattage :

40W~60W

Features　:

Plastic case

1∅, full range input

Io can be adjusted 10~100% by 1~10VDC, PWM signal or resistance

Assemble on industrial rail TS-35 / 7.5 or 15

Suitable for machine vision inspection system and plant cultivation applications

EDR Series

Wattage :

75W~150W

Features　:

Metal case, low cost

1∅, full range input

Slim size, model width: 32 ~ 40mm

EMC EN55022 class A

Assemble on industrial rail TS-35 / 7.5 or 15

2 years warranty

NDR Series

Wattage :

75W~480W

Features　:

Metal case, economical models

1∅, full range input

Slim size, model width: 32 ~ 85.5mm

EMC EN55022 class B

Assemble on industrial rail TS-35 / 7.5 or 15

3 years warranty

SDR Series

Wattage :

75W~960W

Features　:

Metal case, slim size

1∅, full range input (230VAC only for SDR-960)

94% high efficiency and complete functions

Built-in active PFC function (except SDR-75)

Assemble on industrial rail TS-35 / 7.5 or 15

Built-in DC OK relay contact (except SDR-75)

130%~150% peak load capability by models

Current sharing function (SDR-480P/960)

TDR Series

Wattage :

240W~960W

Features　:

Metal case, slim size

3∅, 340~550VAC input

High efficiency up to 94.5%

Built-in active PFC function

Assemble on industrial rail TS-35 / 7.5 or 15

Built-in DC OK relay contact

WDR Series

Wattage :

60W~480W

Features　:

Metal case, slim size

1∅ and 2∅ , 180~550VAC wide input

High efficiency up to 93%

Built-in active PFC function (240W & 480W)

Assemble on industrial rail TS-35 / 7.5 or 15

Built-in DC OK relay contact

Peripheral

Wattage :

NA

Features　:

20A redundant module

20A/40A DIN Rail Buffer Module

20A/40A DC UPS module

AC/DC > Open Frame- Open Frame Switching Power Supply

Industrial - On Board Type

Wattage :

1W~90W

Features　:

Assemble on the main PCB of the system

Miniature encapsulated type

No load power consumption<0.075W~0.1W

Working temperature:-30~+85℃ by models

Comply with EN55022 class B without any additional components

Various styles: PIN, SMD, Screw terminal style

Industrial - Green PCB Type

Wattage :

15W~500W

Features　:

3" x 2", 4" x 2", 5" x 3" complete sizes for choice

PFC models: EPP, ELP series;
Non-PFC models: EPS series

No load power consumption <0.1W~0.5W

Suitable for ErP regulated end systems

Industrial - PCB Type

Wattage :

5W~250W

Features　:

PCB type, non-PFC for small wattage models

Multiple form factors for different installations: 7" x 4.25", 5" x 3", 4" x 2", slim type

Medical - On Board Type

Wattage :

5W~90W

Features　:

Assemble on the main PCB of the system

Medical safety approved (2xMOPP)

Suitable for BF application with appropriate system consideration

Medical - PCB Type

Wattage :

30W~500W

Features　:

Compact size

PCB type, non-PFC for small wattage models

Medical safety approved (2xMOPP)

Low leakage current

Suitable for BF application with appropriate system consideration for selected models

AC/DC > Specific Purpose- Specific Purpose Power Supply

Security-DIN Type

Wattage :

40W~100W

Features　:

With UPS function (need external batteries)

Suitable for security industry or battery backup systems

Assemble on industrial rail TS-35 / 7.5 or 15

Security-Enclosed Type

Wattage :

35W~155W

Features　:

With UPS function (need external batteries) for AD/ADD series

Suitable for security industry or battery backup systems

Security-PCB Type

Wattage :

35W~160W

Features　:

With UPS function (need external batteries)

Suitable for security industry or battery backup systems

Built-in active PFC function (PSC-160)

Case available

Moving Sign Series

Wattage :

150W~400W

Features　:

Light weight and low profile

Suitable for high efficiency moving sign applications

Conformal coating (HSP, HDP, NEL, HSN series)

Semi-potted and design against rain splash (ERP Series)

AC/DC > PV Power- Programmable Power Supply

CSP Series

Wattage :

3000W

Features　:

Full range 180~264VAC input

Built-in active PFC function

High efficiency up to 93%

Built-in DC fans for forced air cooling

Output voltage/current programmable

Active current sharing up to 9000W(2+1)

Built-in remote ON/OFF control /  Auxiliary power / power OK signal

Protections: short circuit/over current/over voltage/over temperature/ fan failure

5 years warranty

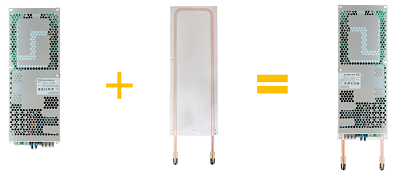

PHP Series Water-cooled

Wattage :

3500W

Features　:

Water-cooled heat dissipation technology

Output voltage and constant current level programmable

Support PMBus communication protocol (CANBus optional)

Support PSUs in parallel connection

Active current sharing, total system power up to 14000W (3+1)

Optional cold plate for quick implementation,ordering no.: HS-656

DPU Series

Wattage :

3200W

Features　:

Universal AC Input/ Full Range

Built-in Active PFC

High efficiency up to 94.5%

air cooling by built-in DC fan

Output voltage and constant current level programmable

Built-in OR-ing FET, support hot swap (hot) plug function

Protection: Short Circuit/ Overload / Over voltage/ Over temperature

Optional conformal coating

Safety approval: UL/TUV/EAC/CE/CB

5 years warranty

SPV Series

Wattage :

150W~300W

Features　:

Built-in active PFC function

Output voltage programmable from 20~110%

RST Series

Wattage :

5000W~10000W

Features　:

Single output power supply with 5000W / 10000W high wattage

3 phase input:3-wire / △196~305VAC or 4-wire / Y340~530VAC

Built-in active PFC function

High efficiency up to 91%

20000W with built-in parallel (active current sharing) function

Output voltage and constant current level programmable

5 years warranty

RSP-750~3000 Series

Wattage :

750W~3000W

Features　:

Programmable high power with active PFC function

Output voltage programmable

Constant current level Icc programmable (RSP-750/1600 only)

1U low profile (41mm) : RSP-750/1000/1600/2000,
2U profile : RSP-1500/2400/3000

Built-in current sharing (except RSP-750)

5 years warranty

AC/DC > Rack Power- 19" Rack Power Unit

RCP Series

Wattage :

1000W~18000W

Features　:

Complete rack mountable front end solution: rectifier and charger

1U low profile

19 inch rack shelf available

DRP Series

Wattage :

3200

Features　:

• Complete rack mountable front end solution: rectifier and charger
• 1U low profile
• 19 inch rack shelf available

AC/DC > Configurable- Modular Power Supply

UMP Series

Wattage :

400W

Features　:

Fan-less, 1U design

Modular design, with DC-DC module cards (NID35/65/100 series models)

Can be used as a single rail PSU

wide operating temperature ranges from -30 ~ +70 ° C

Meet OVC III requirements

Meet 2x MOPP isolation requirements, ideal for BF rated medical equipment

MP Series

Wattage :

450W/650W/1000W

Features　:

Configurable/customizable/flexible power supply

Built-in active PFC function

5 slot output for MP450/650,
7 slot output for MP1k0

75W/100W/150W/210W/300W/360W module available

NMP Series

Wattage :

650W/1200W

Features　:

Configurable/customizable/flexible power supply

Built-in active PFC function

4 slot output for NMP650

6 slot output for NMP1K2

NMP Series Selection Tool

AC/DC > LED Driver- LED Driver

AP Series

Wattage :

8W~35W

Features　:

90~264VAC input

Rectangular plastic case with IP42 level

Class II design, without FG

Low cost, small and compact size

Constant voltage mode for APV series

Constant current mode for APC series

Suitable for indoor LED lighting and moving sign applications

AP-E Series

Wattage :

8W~16W

Features　:

180~264VAC input only

Rectangular plastic case with IP42 level

Class II design, without FG

Low cost, small and compact size

Constant voltage mode for APV-E series

Constant current mode for APC-E series

Suitable for indoor LED lighting and moving sign applications

ELG Series

Wattage :

75W~300W

Features　:

100~305VAC input range

Metal case, IP67/IP65 design for indoor or outdoor installations

Function options:
output adjustable via potentiometer; 3 in 1 dimming (0~10Vdc or 10V PWM signal or resistance, dim-to-off); smart timer dimming; DALI; auxiliary DC output (ELG-150 BE-Type)

Type "HL" LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries

Suitable for LED street lighting and outdoor LED lighting

5 years warranty

ELG-C Series

Wattage :

75W~300W

Features　:

100~305VAC input range

Constant current (C.C.) output

Constant power (C.P.) output

Built-in active PFC function

No load/standby power consumption <0.5W

Metal case, IP67/IP65 design for indoor or outdoor installations

Function options:
output adjustable via potentiometer; 3 in 1 dimming (0~10Vdc or 10V PWM signal or resistance, dim-to-off); smart timer dimming; DALI; auxiliary DC output (ELG-150-C BE-Type)

Type "HL" LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries

Suitable for LED street lighting and outdoor LED lighting

5 years warranty

FDL Series

Wattage :

65W~100W

Features　:

180~295VAC input range

Built-in active PFC function

Constant current design

Fully encapsulated with IP65 level (FDL-65)

No load power consumption <0.5W

3 years warranty

GSC Series

Wattage :

18W~40W

Features　:

90~277VAC input, built-in active PFC function

Constant current mode

Fully isolated plastic case with IP40 design

Class II design, without FG

IEC320-C8 inlet for B type,
2 pole EURO plug for E type

No load power consumption<0.15W

Suitable for indoor LED lighting

HBG(P) Series

Wattage :

60W~240W

Features　:

Circular shape design:
HBG-60 : plastic case; HBG-100/160/240 : metal case; HBG-60P/100P/160P/240P : PCB type

90~305VAC input, built-in active PFC function [90~295VAC for HBG-60(P)]

Circular shape design: HBG-60: plastic case, HBG-100/160/240: metal case HBG-60P/100P/160P/240P:PCB type

IP67/IP65 design for indoor or outdoor installations for HBG-100/160/240

Built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) for HBG-100(P)/160(P)/240(P) B type

Type "HL" LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries (HBG-100/160 only)

Suitable for LED high/low bay lighting, stage lighting and spot lighting

5 years warranty

HLG Series

Wattage :

40W~600W

Features　:

90~305VAC input, built-in active PFC function

96% high efficiency (HLG-600H)

Metal case, IP67/IP65 design for indoor or outdoor installations

Function options:
output adjustable via potentiometer; 3 in 1 dimming (1~10Vdc or 10V PWM signal or resistance); timer dimming

Type "HL" LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries

Suitable for LED street lighting, outdoor LED lighting and general outdoor applications with high IP requirement

IP68/-55℃ startup/10G vibration options available (Please contact MEAN WELL for details)

7 years warranty

HLG-C Series

Wattage :

70W~480W

Features　:

90~305VAC input, built-in active PFC function

Constant current output with high output voltage >60VDC

Metal case, IP67/IP65 design for indoor or outdoor installations

Function options:
output adjustable via potentiometer; 3 in 1 dimming (1~10Vdc or 10V PWM signal or resistance); timer dimming; smart timer dimming

Type "HL" LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries (HLG-240H-C/320H-C only)

Suitable for LED street lighting and outdoor LED lighting

7 years warranty

HVG(C) Series

Wattage :

65W~1000W

Features　:

Wide input range 180~528VAC

Metal case, IP67/IP65 design for indoor or outdoor installations

Built-in active PFC function

Function options:
output adjustable via potentiometer; 3 in 1 dimming (0~10Vdc or 10V PWM signal or resistance, dim-to-off); timer dimming; smart timer dimming

Type "HL" LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries (except for HVG-65 and HVGC-65/100)

Suitable for LED street lighting and outdoor LED lighting applications

5 years warranty

LDB-L/LW Series

Wattage :

300/350/500/600mA

Features　:

Constant current DC/DC buck-boost LED driver

High efficiency up to 91%

Comply with EN55015 and FCC part 15 without additional input filter and capacitors

PWM dimming and remote ON/OFF control

Suitable for buck-boost type lighting systems (additional mother board is required)

Pin, wire style for choice

LDH Series

Wattage :

350~1750mA

Features　:

Constant current output DC/DC step-up LED driver

High efficiency up to 95%

Comply with EN55015 without additional any components

PWM+analog dimming and remote ON/OFF control

Suitable for boost type lighting systems (Additional mother board is required)

Pin, wire style for choice

LP Series

Wattage :

18W~150W

Features　:

90~264VAC input (except for 18W and 150W)

Slim plastic case with IP67 level

Economical design

Withstand 300VAC surge input for 5 seconds (LPV/C-20/35/60/100)

-30~70℃ wide operation range

Suitable for economical LED lighting and moving sign applications

Type "HL" LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries (LPVL-150 only)

ODL Series

Wattage :

45W~65W

Features　:

Constant current output mode  (ODLC Series)

Constant voltage output mode  (ODLV Series)

Flicker free design( ODLC Series)

Built-in active PFC function

Built-in 2 in 1 dimming function (0~10VDC or PWM signal, dim-to-off )

Suitable for indoor LED lighting applications

LDD-L Series

Wattage :

300/350/500/600/700mA

Features　:

Constant current output DC/DC step-down converter

High efficiency up to 97%

Comply with EN55015 and FCC part15 without additional input filter and capacitors

PWM dimming and remote ON/OFF control

Protections: Short circuit / Over temperature

Cooling by free air convection

Fully encapsulated with IP67 level for pin and wire style

Suitable for driving illumination LED

3 years warranty

LDD-H Series

Wattage :

300~1400mA

Features　:

Constant current output DC/DC step-down converter

Comply with EN55015 and FCC part15 without additional input filter and capacitors

PWM dimming and remote ON/OFF control

Protections: Short circuit / Over temperature

Cooling by free air convection

Suitable for driving illumination LED

3 years warranty

DLP-04 Series

Wattage :

4

Features　:

90~295VAC full range input

Slim design

Plastic case with class II

No load/standby power consumption<0.5w( type L)

Withstand 300VAC surge input for 5 seconds

-20~+60℃ working temperature

Protections: short circuit / over voltage

Dimension: DLP-04R : 35*90*54.5 mm (W*H*D)
DLP-04L : 145*38*22 mm (L*W*H)

3 years warranty

LDC Series

Wattage :

35W~80W

Features　:

Constant power output

Flicker free design

3 in 1 dimming：0~10Vdc、PMW signal or resistance

Built-in active PFC function

No load power consumption <0.5W

working temperature： -25~+90℃

Protections: short circuit /

UL/ENEC/TUV/CCC/CB/CE certified

5 years warranty

XLG Series

Wattage :

25W~240W

Features　:

Wide input range 100~305V AC

Constant power mode with adjustable output current

Built-in active PFC function and Efficiency up to 90%

Dimming functions with 3 in 1

Protections: Short circuit/Over voltage/Over temperature

Surge protection with 6KV(L/N-FG)/4KV(L-N)

5 years warranty

XBG Series

Wattage :

100W~240W

Features　:

Wide range 100~305VAC mains input

Circular shape with Patent Design(Patent No.CN201220314551) and Seal housing IP67

Built-in active PFC function and constant power mode

AC input cable with waterproof connector for flexible using

Surge protection: 6 KV /4KV

Protections: short circuit, over voltage, over temperature

Life time >50,000 Hrs. and 5 years warranty

SLD Series

Wattage :

50~80W

Features　:

Wide input range 110~305V AC

Slim and linear housing design

Built-in active PFC function and efficiency up to 90%

Design with class 2/II and SELV

Protections: Short circuit/Over voltage/Over temperature

3 years warranty

LCM- IoT Series

Wattage :

25W~60W

Features　:

Constant Current output and adjustable by dip switch

Flicker-free design

Plastic housing and class II design without FG

Built-in active PFC function

Dimming functions: Bluetooth Mesh and Push dim

Surge protection with 2KV(L-N)

Protections: Short circuit/Over voltage/Over temperature

PWM-IoT Series

Wattage :

60W~200W

Features　:

Constant Voltage output with 12V/24V/48V

Flicker free design

Plastic housing and class II design without FG

Built-in active PFC function

Surge protection with 2KV(L-N)

Protections: Short circuit/Over voltage/Over temperature

GSV Series

Wattage :

30W~60W

Features　:

Various DC Plug Converter available

Class II/2 power unit, no FG

Constant voltage design

Built-in active PFC function with EN61347-1 regulation

No load power consumption<0.5W

DLC-02

Wattage :

8W

Features　:

Comply with IEC 62386 DALI-2, and Part 101/103/207/208/301/302/303/304

2 x channels of DALI bus, for control gear and control device using

4 x programmable relays, for electrical switch or curtains control

DLC software for system settings or remotely through internet

Built-in LCD display and control buttons to set and view settings

Built-in timer IC, commission schedule

Communication interface: RJ-45 and KNX, for connection expansion with other building automation systems

DIN-Rail mounting, compact design 8SU width (144x 90x 58.4mm)

PLD Series

Wattage :

16W~60W

Features　:

16W: 90~135VAC or 180~295VAC
25W: 90~295VAC
40W/60W: 180~295VAC

Built-in active PFC function

Fully isolated plastic case with IP42 level

Class II design, without FG

Constant current mode

Suitable for indoor LED lighting

PLM Series

Wattage :

12W~40W

Features　:

110~295VAC input (180~295VAC input for E type)

Built-in active PFC function

Fully isolated plastic case with IP30 level

Class II design, without FG

Push terminal I/O

Constant current mode

No load power consumption<0.5W

Suitable for indoor LED lighting

PCD Series

Wattage :

16W~60W

Features　:

16W/25W: 90~135VAC or 180~295VAC 40W/60W: 180~295VAC

AC phase-cut dimming, work with leading and trailing edge TRIAC dimmers

Fully isolated plastic case with IP42 level

Built-in active PFC function

Class II design, without FG

Constant current mode

Suitable for indoor LED lighting

LPF Series

Wattage :

16W~90W

Features　:

90~305VAC input, built-in active PFC function

Fully isolated plastic case with IP67 level (16W optional)

Class II design, without FG

Built-in 3 in 1 dimming function for D type (1~10VDC, PWM signal or resistance)

Type "HL" LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries (LPF-90/90D)

Suitable for LED lighting and moving sign applications

5 years warranty

NPF Series

Wattage :

40W~200W

Features　:

90~305VAC input, built-in active PFC function

Fully isolated plastic case with IP67 level

Class II design, without FG

No load/standby power consumption<0.15W (<0.5W for D type)

Built-in 3 in 1 dimming function (0~10VDC, PWM signal or resistance, dim-to-off ) for D type

Type "HL" LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries [NPF-40(D)/-60(D)/-120(D) only]

Suitable for LED lighting and moving sign applications

5 years warranty

PWM Series

Wattage :

40W~200W

Features　:

90~305VAC input, built-in active PFC function

Fully isolated plastic case with IP67 level

Constant voltage PWM style output

Class II design, without FG

No load power consumption<0.5W

Built-in 3 in 1 dimming function (0~10VDC, PWM signal or resistance, dim-to-off)

Suitable for LED strip lighting

5 years warranty

PLC Series

Wattage :

30W~96W

Features　:

90~264VAC input, built-in active PFC function

Fully isolated plastic case with screw terminal style of I/O

Suitable for indoor LED lighting and moving sign applications

PLN Series

Wattage :

20W~96W

Features　:

90~295VAC input (90~277VAC for PLN-20), built-in active PFC function

Fully isolated plastic case with IP64 level

Suitable for indoor LED lighting and moving sign applications

HLN Series

Wattage :

40W~80W

Features　:

90~305VAC input, built-in active PFC function

Fully isolated plastic case with IP64 level

Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance) for B type

User adjustable output voltage and current level for A type

Suitable for indoor LED lighting and moving sign applications

LCM Series

Wattage :

25W~60W

Features　:

180~295VAC input for 40W/60W, 180~277VAC input for 25W

Constant current mode

Built-in active PFC function

Multiple-stage output current level selectable by DIP switch

Built-in 3 in 1 dimming function for non DA type (0~10VDC, PWM signal or resistance, dim-to-off)

Built-in DALI interface and push dimming function for DA type

Suitable for indoor LED lighting applications

LCM-U Series

Wattage :

40W~60W

Features　:

90~132VAC input only

Constant current mode

Built-in active PFC function

Multiple-stage output current level selectable by DIP switch

Built-in 3 in 1 dimming function for non DA type (0~10VDC, PWM signal or resistance, dim-to-off)

Built-in DALI interface and push dimming function for DA type

Suitable for indoor LED lighting applications

IDL Series

Wattage :

25W~65W

Features　:

Constant current output mode  (IDLC Series)

Constant voltage output mode  (IDLV Series)

Flicker free design  (IDLC Series)

Built-in active PFC function

Built-in 2 in 1 dimming function (0~10VDC or PWM signal, dim-to-off )

Suitable for indoor LED lighting applications

PLP Series

Wattage :

30W~60W

Features　:

90~264VAC input , built-in active PFC function

Suitable for built-in LED lighting systems

IDP Series

Wattage :

25W~65W

Features　:

Constant current output mode(IDPC Series)

Constant voltage output mode(IDPV Series)

Flicker free design(IDPC Series)

Built-in active PFC function

Built-in 2 in 1 dimming function (0~10VDC or PWM signal, dim-to-off )

Suitable for built-in LED lighting systems

HLP Series

Wattage :

40W~80W

Features　:

90~305VAC input, built-in active PFC function

Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance)

Suitable for built-in LED lighting systems

AC/DC > LED Accessory - LED Accessories

DAP-04

Wattage :

NA

Features　:

90~305VAC input

Convert DALI signal to PWM signal

4 DALI addressable output channels

Meet DALI standards(IEC62386-101,102,207)

Suitable to use along with MEAN WELL's AC/DC LED PSU with 3 in 1 dimming function

PIR-045

Wattage :

NA

Features　:

Built-in Passive Infrared sensor module

MCU controller, no relay contact

Adjustable off-time delay / dimming level / sensitivity

SDP-001

Wattage :

NA

Features　:

Smart timer dimming programmer

SPD Series

Wattage :

NA

Features　:

10kA/20kA surge protection device

Line to Ground & Line to Line protected

Suitable for surge protection of LED drivers

IP66/67 design for indoor or outdoor installations

WPD-06

Wattage :

NA

Features　:

EnOcean wireless control technology

Easy installation and configuration

6 protected and independent dimming output channels

Up to 128 wireless batteryless switches

Suitable for constant voltage lighting application

Up to 30 meter wireless distances

AC/DC > Adaptor- External Switching Power Supply

Industrial - Desktop (Level V)

Wattage :

15W

Features　:

Various DC Plug Converter available

Energy efficiency level VI

No load power consumption <0.075W

Comply with EISA 2007, NRCan, MEPS and ErP

0~50℃ working temperature

A type: Class I (with FG), IEC320-C14;
B type: Class II (no FG), IEC320-C8

2 years warranty

Industrial - Desktop (Level VI)

Wattage :

15W~280W

Features　:

Various DC Plug Converter available

Global safety certificates for GST series :
UL, TUV, PSE, RCM, KC, SIRIM, BIS, EAC, BSMI, CCC

Energy efficiency Level VI

No load power consumption <0.075W~0.5W

Comply with EISA 2007/DoE, NRCan, MEPS, ErP and CoC Version 5

Fanless design with -30~+70℃ working temperature

A type: Class I (with FG), IEC320-C14;
B type: Class II (no FG), IEC320-C8

3 years warranty

Industrial - Wall-mounted (Level VI)

Wattage :

5W~60W

Features　:

Various DC Plug Converter available

Energy efficiency Level VI

No load power consumption <0.075W~0.15W

Comply with EISA 2007/DoE, NRCan, ErP and CoC Version 5

-30~+70℃ working temperature

2 pole USA plug(U type) / EURO plug(E type) / Interchangeable type for GE series

Slim design for SGA series

3 years warranty

Medical - Desktop (Level VI)

Wattage :

18W~220W

Features　:

Various DC Plug Converter available

Medical safety approved (2xMOPP), BF application(B type only)

Energy efficiency Level VI (GSM06/18/25/36/40/60 5~9V: Level V)

No load power consumption <0.1W~0.15W

Comply with EISA/DoE, NRCan, ErP and meet CoC Version 5

A type: Class I (with FG), IEC320-C14;
B type: Class II (without FG), IEC320-C8

3 years warranty

Medical - Wall-mounted (Level V / Level VI)

Wattage :

6W~36W

Features　:

Various DC Plug Converter available

Medical safety approved (2xMOPP), BF applications

Energy efficiency Level VI (GSM06/12 and GSM18/25/36 5~9V for Level V)

No load power consumption <0.075W~0.3W

Comply with EISA/DoE, NRCan, MEPS, ErP and meet CoC Version 5

2 pole USA plug(U type)/EURO plug(E type) for GSM series, interchangeable type for GEM series

3 years warranty

Moistureproof - Desktop

Wattage :

60W~200W

Features　:

Various DC Plug Converter available

IP67 design for power body

Energy efficiency Level VI

No load power consumption <0.15W

E-Type: EU ErP and meet CoC Version 5 (OWA-60E/90E);
U-Type: EISA 2007/DoE and NRCan

Class II (no FG)

5 years warranty

AC/DC > KNX- KNX

KNX-USB Interface

Wattage :

NA

Features　:

KNX-USB interface

No additional external power supply required

KNX commissioning, addressing and parameter settings

KNX protocol and system visualization

Diagnostic operations

Long messages up to 220 byte APDU

3 years warranty

KNX IP Router

Wattage :

NA

Features　:

KNX IP router

4 IP/TP tunnelings

No additional external power supply required

Universal Plug and Play

Telegram filtering

Built-in web front-end page

3 years warranty

KAA-8R Switching Actuator

Wattage :

NA

Features　:

8 channel actuator in a compact size

Suitable for various and mixed applications

For AX， C-load， capacitive and inductive type of loads

Program via ETS5.0 software

Manual control via Push button

Programmable various time and scene function

3 years warranty

KAA-4R4V Dimming Actuator

Wattage :

NA

Features　:

Dimming and switching LED driver and conventional electronic ballast

LED indicator for each channel

Linear or logarithmic dimming curve programmable via ETS software

Manual control via Push button on the panel

Programmable various time and scene function

3 years warranty

KNX Line Coupler

Wattage :

NA

Features　:

KNX TP Line Coupler/Repeater

Telegram filtering function

Long messages support up to 240 byte APDU

Trace the subline traffic

Diagnostic functions

Manual function

3 years warranty

LCM-KN KNX-LED Driver

Wattage :

25W~60W

Features　:

Constant Current mode output with multiple levels selectable by dip switch

KNX protocol

Support emergency lighting (EL)

Integrated constant light output

Integrated KNX push button interface

Synchronization up to 10 units

Functions: Manual dim, operation hours, power consumption feedback, log/linear curve selection…etc

PWM-KN Series

Wattage :

60W~200W

Features　:

Constant Voltage PWM style output with user changeable frequency up to 4KHz compliant IEEE 1789-2015 no risk

Built-in active PFC function

Standby power consumption<0.5W

Integrated KNX control protocol

No need KNX-DALI gateway

KNX Power

Wattage :

20W~40W

Features　:

EIB/KNX power supply with integrated choke

1∅, 180~264VAC input

No load power consumption <0.5W

Assemble on industrial rail TS-35 / 7.5 or 15

KDA-64

Wattage :

NA

Features　:

KNX proof gateway

Easy configuration & installation

Connect up to 64 DALI drivers

Built-in DALI power supply

LCD 2x12 display

Lighting control via the button

Lighting control via the integrated web server

Up to 16 DALI lighting groups setting

Up to 16 DALI scenes setting

3 year warranty

DLC-02-KN

Wattage :

8W

Features　:

Comply with IEC 62386 DALI-2, and Part 101/103/207/208

2 x channels of DALI bus, for control gear and control device using

4 x programmable relays, for electrical switch or curtains control

DLC software for system settings or remotely through internet

Built-in LCD display and control buttons to set and view settings

Built-in timer IC, commission schedule

Communication interface: RJ-45 and KNX, for connection expansion with other building automation systems

DIN-Rail mounting, compact design 8SU width (144x 90x 58.4mm)

AC/DC > Charger- External Battery Charger

NPB Series

Wattage :

120W~360W

Features　:

90~264Vac universal AC input, built-in PFC

Charger for compatible with lead-acid and li-ion batteries

Wide adjustable output range by VR:
Charging voltage adjustable(10.5~15.2V、21~30.4V、42~60.8V); Charging current adjustable(50~100% rated current)

2 or 3 stage selectable by DIP S.W

No load power consumption< 0.15W (AC S.W off)

-30C~+70^oC wide operating temperature

Protections: Short circuit / Over voltage / Over temperature / Battery reverse polarity protection

Comply with UL/EN62368-1 and EN60335-1/2-29 dual certification

3 years warranty

Stationary Charger

Wattage :

300W~1600W

Features　:

Chargers for lead-acid and Li-ion batteries

3-stage charging curve: PB-300/360, 2/3/8-stage charging curve: PB-600/1000, 3-stage charging curve suitable for harsh environment applications: HEP-600C

Intelligent charger with programmable 3-stage charging curve: RPB-1600/RCB-1600

5 years warranty for RPB-1600/RCB-1600, 6 years warranty for HEP-600C

Green Desktop Charger

Wattage :

120W~360W

Features　:

ENP: Level VI power supply,
ENC: 3-stage programmable charger for lead-acid batteries

Universal AC input/ Full range

Adaptor Charger

Wattage :

30W~330W

Features　:

Portable battery charger

Green adaptor with charging function

SBP-001

Wattage :

NA

Features　:

Smart Battery Charging Programmer

Simple connection and configuration

No need of battery or AC power

LED status indicator

AC/DC > Accessory - Mounting Accessories

DRL-01

Wattage :

Features　:

Suitable for case : 903, 905, 931, 932, 971

DRL-02

Wattage :

Features　:

Suitable for case : 901, 902, 906, 915, 916, 920

DRL-03A

Wattage :

Features　:

Suitable for case : 980, 987

DRP-01

Wattage :

Features　:

Suitable for case : 901, 902, 903, 906, 931, 932, 946

DRP-01A

Wattage :

Features　:

Suitable for case : 203, 205, 978, 999

DRP-02

Wattage :

Features　:

Suitable for case : 905, 915, 916, 920, 928

DRP-03

Wattage :

Features　:

Suitable for case : DRP-01, DRL-01~03

DRP-04

Wattage :

Features　:

Suitable for case : 203, 205, 978, 999

MHS012

Wattage :

Features　:

Suitable for case : 206, 207, 912, 915, 916, 935, 939, 940, 977, 980, 982, 986, 987, 995

MHS013

Wattage :

Features　:

Suitable for case : 919, 926

MHS014

Wattage :

Features　:

Suitable for case : 212, 952

MHS025

Wattage :

Features　:

Suitable for case : 910

MHS026

Wattage :

Features　:

Suitable for case : 943

MHS027

Wattage :

Features　:

Suitable for case : 971, 931

DC/DC > Din Rail- Din Rail

DDR Series

Wattage :

15~480W

Features　:

2:1 or 4:1 wide input range

Fanless design, cooling by free air convection

Protections: short circuit / overload / over voltage / input reverse polarity / input under voltage

LED power indicator

Suitable for DIN rail types: TS-35/7.5 or TS-35/15

4KVdc I/O isolation (reinforced isolation)

Ultra slim dimensions

3 years warranty

DDRH Series

Wattage :

60W

Features　:

150~1500Vdc 10:1 ultra-wide input range

Potted with silicone gel, provides dust and moisture protection and free air convection cooling capability

-30～+80℃ ultra-wide temperature range ( >+55℃ de-rating)

Built-in DC OK relay contact

Protections: short circuit / overload / over voltage / over temperature / DC input under voltage / DC input reverse polarity

Adjustable output voltage (100~120%)

DC/DC > Module Type- Module Type

Medical - SIP Package

Wattage :

1W~6W

Features　:

SIP7 package with international standard pinout(1~2W); DIP24 package with international standard pinout (3~6W)

Operating temperature range -40~ +90°C

Medical safety approved (1xMOPP/2xMOOP) according to ANSI AAMI ES60601-1

Low patient leakage current <2μA (1~2W);  Low patient leakage current <5μA (3~6W)

Protection: Short circuit(3 second max.) / Overload (3~6W)

3 years warranty

Medical- 2" x 1" Package

Wattage :

15W~20W

Features　:

2" x 1" package with international standard pinout

Operating temperature range -40~ +90°C

Medical safety approved (2xMOPP according to ANSI AAMI ES60601-1)

Low patient leakage current <5 μA

3 years warranty

SMD Package

Wattage :

1W~2W

Features　:

SMD type

Single and dual output models

SIP Package

Wattage :

1W~9W

Features　:

Regulated and unregulated models

±10% or 2:1 wide input range

On board module type, assemble on the main PCB of the system

DIP Package

Wattage :

0.5W~3W

Features　:

Regulated and unregulated models

±10% input range

On board module type, assemble on the main PCB of the system

DIP - 1.25" x 0.8" Footprint

Wattage :

3W~10W

Features　:

DIP24 package

2:1 (standard), 4:1 (option) wide input

1~1.5KVDC (standard), 3KVDC (option) isolation

Single and dual output models

DIP - 1" x 1" Footprint

Wattage :

15W~30W

Features　:

DIP package

1.5KVDC isolation

Single output models

Remote ON/OFF control, remote sense, trimming output ±10% by models

DIP - 2" x 1" Footprint

Wattage :

5W~60W

Features　:

DIP package

2:1, 4:1,18:1 wide input

1~1.5KVDC (standard), 3KVDC (option) isolation

Single and dual output models

Remote ON/OFF control, remote sense, trimming output ±10% by models

DIP - 2" x 2" Footprint

Wattage :

15W~60W

Features　:

DIP package

2:1 (standard), 4:1 (option) wide input

1~1.5KVDC isolation

Single, dual and triple output models

Half-brick

Wattage :

75W~150W

Features　:

Half-brick size (2.28" x 2.4" x 0.5")

DIP package

2:1 wide input range, 1.5KVDC isolation

Built-in remote ON/OFF and remote sense

2.5V / 3.3V / 15V output available

Optional heat sink available

DC/DC > On Board Type - On Board Type

Non-Isolated: N78 Series

Wattage :

3.3W~15W

Features　:

Pin-out compatible with LM78xx / LM79xx linear regulators

High efficiency up to 96%, no heatsink required

Wide input range up to 36V

Support negative output

Operating temperature range -40 ~ +85^oC

Comply to BS EN/EN55032 radiated Class B without additional components

Protection: Short circuit / Overload / Over temperature

3 years warranty

Non-Isolated: NID Series

Wattage :

30W~100W

Features　:

3:1 wide input range

High efficiency up to 97%

Built-in remote ON/OFF control

Economical open frame design

Isolated: NSD Series

Wattage :

5W~15W

Features　:

4:1 wide input range

1~1.5KVDC isolation by models

Built-in remote ON/OFF contro

Low cost, high reliability

DC/DC > PCB Type - PCB Type

PSD Series

Wattage :

5W~45W

Features　:

2:1 wide input range

1.5~2KVAC isolation by models

DC/DC > Enclosed Type - Enclosed Type

RSD Series

Wattage :

30W~500W

Features　:

Compliance with EN50155 and EN45545-2 railway standard

2:1 or 4:1 wide input range

Isolation: 4000VDC

1U low profile

Half encapsulated

SD Series

Wattage :

15W~1000W

Features　:

2:1 wide input range (4:1 for SD-500/1000)

1.5~2KVAC isolation by models

1U low profile (41mm) for SD-1000

12V/0.25A auxiliary output for SD-500/1000

Built-in remote ON/OFF control and remote sense for SD-500/1000

DC/AC > Modified Sine Wave-

A301/302 Series

Wattage :

100W~2500W

Features　:

Modified sine wave output, suitable for resistive load

Low cost

1 year warranty

DC/AC > True Sine Wave -

NTS Series (Built-In Type)

Wattage :

250W~400W

Features　:

DC-AC pure since wave output (THD<3%)

Convection cooled fanless design, high efficiency up to 93%

200% Peak power capability

Built-in DIP switches to adjust AC output voltage, frequency, and work mode

Multiple intelligent protection functions:
DC input side – reverse polarity, under voltage, over voltage protections
AC output side – short circuit, overload, over temperature protections

NTS Series

Wattage :

300W~1200W

Features　:

DC-AC pure since wave output (THD<3%)

Convection cooled fanless design, high efficiency up to 93%

Built-in DIP switches to adjust AC output voltage, frequency, and work mode

Multiple intelligent protection functions:
DC input side – reverse polarity, under voltage, over voltage protections
AC output side – short circuit, overload, over temperature protections

NTU Series

Wattage :

1200W

Features　:

Built-in DIP switches to adjust AC output voltage, frequency, and work mode

DC-AC pure since wave output (THD<3%)

Remote controller(IRC1, IRC2, IRC3)

Multiple intelligent protection functions:
DC input side – reverse polarity, under voltage, over voltage protections
AC output side – short circuit, overload, over temperature protections

TN Series

Wattage :

1500W~3000W

Features　:

True sine wave with solar charger & by-pass function

High surge power up to 200%

Output voltage / frequency adjustable

Conformal coating

Computer-based monitoring software, recommended for Windows 7 and Windows 8 Operating System (English and Chinese version)

3 years warranty

TS Series

Wattage :

200W~3000W

Features　:

True sine wave output, suitable for motor related applications

High surge power up to 200%

Output voltage / frequency adjustable

Conformal coating (except for TS-200/400)

3 years warranty

IRC Series

Wattage :

Features　:

Remote controller for TS-700~3000 , TN-1500~3000

DC/AC > Solar Inverter - Solar Inverter

ISI Series

Wattage :

500W

Features　:

ISI-500: Modified sine wave with MPPT solar charger

ISI-501: True sine wave with MPPT solar charger

High surge power up to 200%

2 years warranty (ISI-500), 3 years warranty (ISI-501)

DC/AC > AC⇄DC Bidirectional Power Inverter-

BIC Series

Wattage :

2200W

Features　:

1U low profile design

Full digital design with 93% conversion efficiency for both AD/DC and DC/AD conversion

Ultrafast switching time between AD/DC and DC/AC of 1ms.

CB/TUV/UL 62368-1 certified, and design refer to IEC 62477 regulation

Active current sharing up to 11000W(4+1)

< 3% Low THD in both conversion mode

Force charging and recycle mode with CANbus commend(Optional)

Complete protections: Anti-islanding protection, AC fail protection, DC OVP, OLP, OCP, OTP

5 years warranty

humffrayforese.blogspot.com

Source: https://www.meanwell.com/Meanwell_Products.html

Share this post
